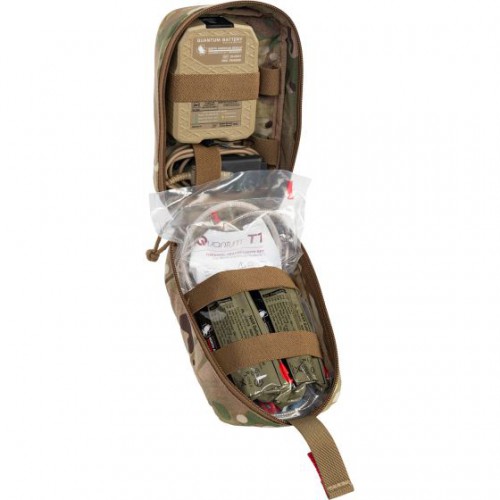

The Quantum Ultimate Intensive Resuscitation Carry Kit (Q.U.I.C.K) provides a compact, convenient carry solution for everything needed to deploy and utilize the Quantum System. Combining the blood and fluid warming system with individually packaged NAR Saline Locks in this MOLLE/PALS configured nylon pouch, equips providers with an optimized solution for carriage to the point of wounding.
The Quantum Blood and Fluid Warming System from LifeWarmer is a Game-Changing innovation that has succeeded in closing a critical capability gap previously left exposed by other commercial off-the-shelf fluid warmers currently fielded. Size, weight, performance, and ease of use are no longer collective barriers to the delivery of whole blood in far forward and near point of injury (POI) prehospital casualty management.
The Quantum exceeds all healthcare and logistical requirements for the delivery of warmed blood or fluids across the defined spectrum of care. The system consists of unique thermal administration sets that incorporate sensing elements with an integrated heating system that does not disrupt the fluid path. With advanced intelligence throughout the system, the lightweight Controller modulates and moderates the energy flow to the integrated heating elements to ensure consistent normothermic fluid delivery to the casualty. The 44V battery is the smallest in category, able to rapidly adjust power distribution based on the temperature and flow rate of the input fluid. This creates a highly efficient system capable of previously unrealized performance optimizations. The Quantum system has an operational weight of just 22 total ounces yet can deliver two units of 39°F Whole Blood (WB) at 100mL/min with an output temperature of 100.4°F (38°+/- 2°C) with only a 24 second warm-up period. The Quantum Blood and Fluid Warming System provides the Tactical Health Care Professional with significant technological overmatch in the fight to eliminate preventable combat death.
NOTE: The Quantum System includes charger that is not intended to be packed in the nylon pouch during deployment.
Specs:

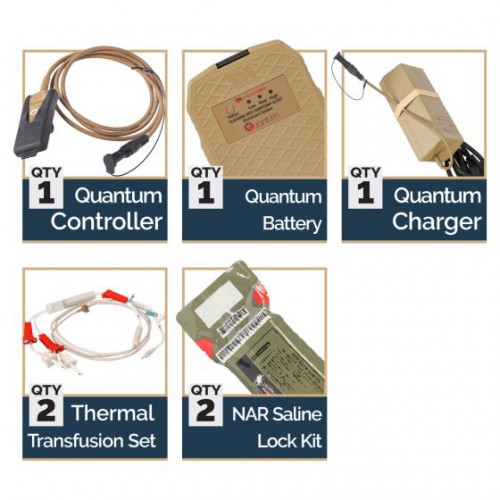

Q.U.I.C.K Kit Contents:
1 x Quantum Lifewarmer System
1 x Controller
1 x Battery
1 x Battery Charger
2 x TTS-B (Thermal Transfusion Set - Blood)
NOTE: TTS-B is Single Use Only, Supplied sterile via Ethylene Oxide
TTS-B drip rate: 20 gtts/ml
2 x NAR Saline Lock Kit
Quantum Operating Parameters:
IV Fluids
Input Temp: 68°F
Output Temp: 100.4°F (38°+/- 2°C)
Flow-Rate: 2 - 200ml/min (+)
Warm-up Time: 24 seconds
Warming Capacity with a Single Battery: 1700 mL
Blood or Blood Products
Input Temp: 39°F
Output Temp: 100.4°F (38°+/- 2°C)
Flow-Rate: 2 - 100mL/min (+)
Warm-up Time: 24 seconds
Warming Capacity with Single Battery: 2 units (+)
Quantum System Contents:
1 x Controller
1 x Battery
1 x Battery Charger
2 x TTS-B (Thermal Transfusion Set - Blood)
NOTE: TTS-B is Single Use Only, Supplied sterile via Ethylene Oxide
Product Weights:
Battery: 16 oz
Controller: 3 oz
Thermal Transfusion Set (TTS-B): 2.7 oz
Charger: 22 oz
Total Operational Weight: 22 oz
(Controller, Battery & TTS-B)
Product Dimensions:
L 8 in. x W 5.25 in. x D 4 in
